system brief introduction

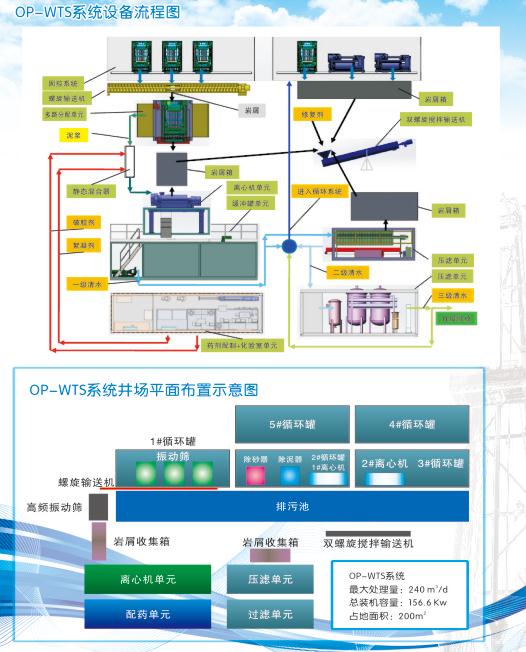

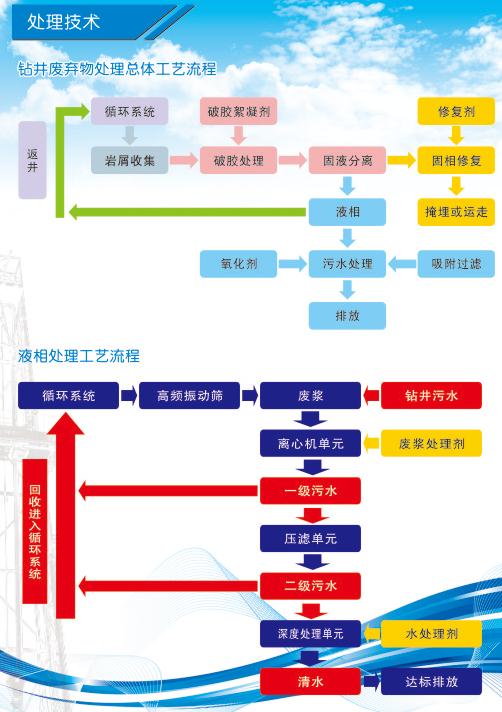

The drilling waste mud disposal system can be used to process solid waste and waste water from the solid control system of drilling process, waste not drop on the ground, reach discharge standards after disposed. The system consists of by HGD (drying shaker) unit, buffer tank unit, centrifuge unit, medicament preparation + laboratory unit, filter unit and filter + reverse osmosis unit and other major equipment, screw conveyor, double helix mixing conveyor and other auxiliary equipment. In addition to user is required to equipped with own cuttings box, transport vehicles, generator, excavator etc. Maximum processing capacity is 20 cubic meters / hour, the total installed capacity of 156.6kw. The system design utilizes chemical treatment to enhance the treatment effect of solid-liquid separation equipment. After centrifugal separation, filter, multi medium filtration, reverse osmosis process, make the harmful part in the mud emission along with the solid phase, liquid phase could be used for the preparation of slurry, discharge or irrigation, solid part reburied after solidification treatment.

System advantages

1, adopt international mainstream centrifugal separation process assisted drug conditions, the main solid-liquid separation process and pharmaceutical preparation realize continuous work, closed operation, the system stability is good, with lower labor intensity ,fewer people, less drug consumption.

2, pharmaceutical preparation, flow regulation and water quality testing work can be finished in the pharmaceutical preparation container, easy to operate, medicine preparation with high accuracy and good working conditions, is conducive to complete the work with high quality.

3, solidification operation adopts pre-mixing by excavator loading, double helix mixer feeding and loading combination mode, and can be operated continuously. The mixing effect is good, mixing accuracy is high.

4, modular design, can be flexible to increase or decrease collocation, to meet the needs of different processing at the same time to improve economic efficiency.

5, the equipment layout is compact, the integration is high, in accordance with the HSE management and the hommization design request, the transportation and installation speed is quick, and the work load is small.

6, small floor area, large processing capacity; purifying waste mud can meet the discharge standard and protect environment.
